Product Reveal

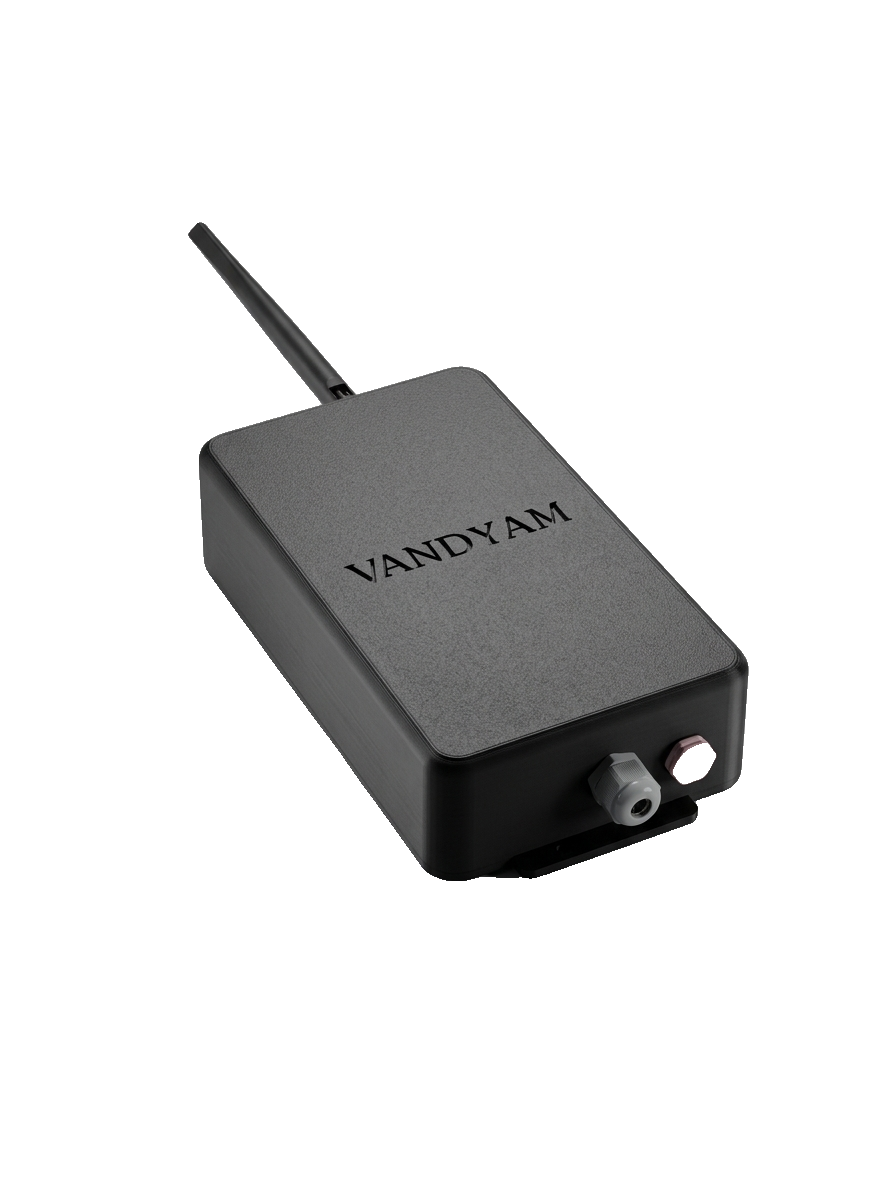

VIoT LoRaWAN Gateway

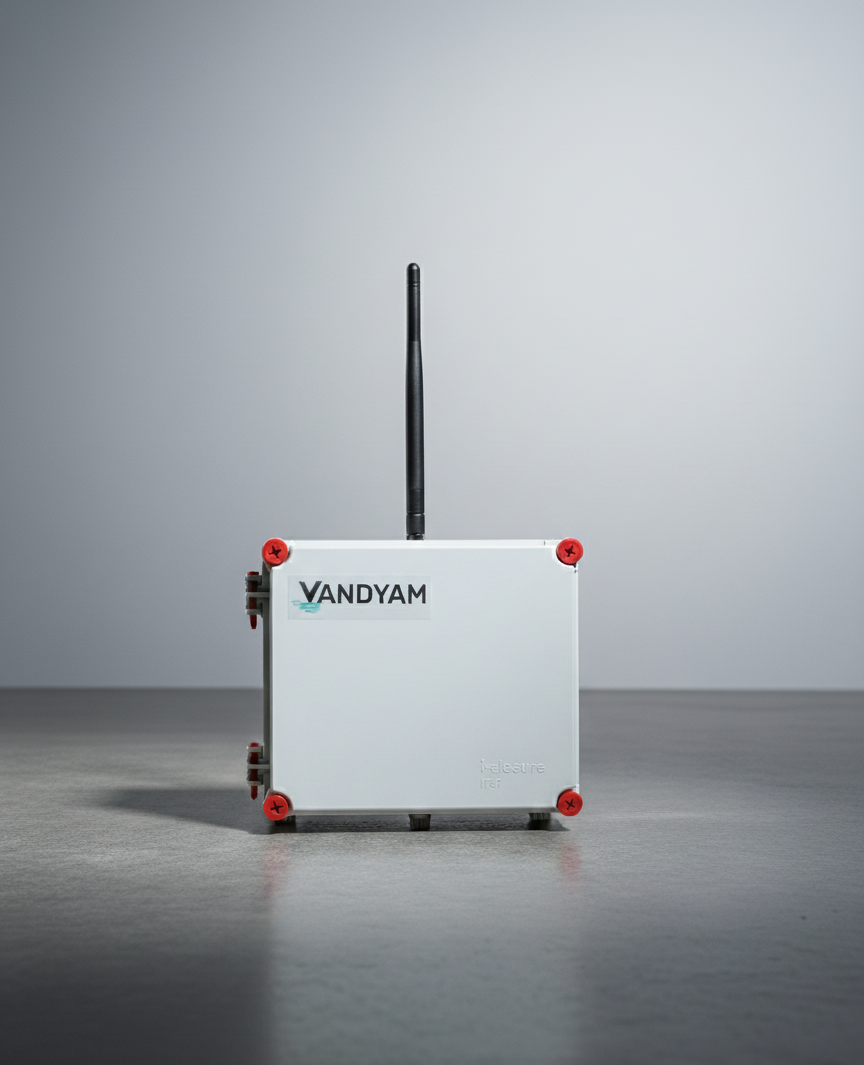

Outdoor Gateway
Reliable LoRaWAN connectivity solution designed for seamless integration, extended coverage, and stable performance with easy deployment and management.
Technical Specifications
Comprehensive hardware and software specifications for system integration and performance benchmarking.
1. LoRaWAN Features
Supported Devices
Up to ~1000 end devices (Class A/B/C, depending on traffic profile)
LoRaWAN Protocol
LoRaWAN version - v1.0 / v1.0.2, Device Classes - Class A, Class B, Class C
Frequency Band
IN865 MHz (865–867 MHz)
Receiver Sensitivity
Up to -140 dBm
Adaptive Data Rate (ADR)
Supported
2. Packet Forwarder
Packet Forwarder Type
Semtech UDP Packet Forwarder / LoRa Basics Station
Concentrator Chip
Semtech SX1302 / SX1303
Channels Supported
8 Channels
TX Power
Up to 22 dBm
3. Network Server
Built-in Network Server
No (packet forwarder only)
External Network Server Support
Yes (e.g., ChirpStack)
Supported Protocols
Semtech UDP Packet Forwarder / LoRa Basics Station (MQTT)
Multicast Support
Supported via Network Server
FUOTA Support
Supported via Network Server (LoRaWAN Class B / Class C)
4. Hardware System
CPU
Quad-core 1 GHz, 64-bit ARM Cortex-A53 (Broadcom BCM2710A1) (check with h/w)
Memory
512 MB LPDDR2 SDRAM (check with h/w)
Antenna Connector (LoRa)
1 × 50 Ω SMA Connector (check with h/w)
5. Wi-Fi Interface
Antenna
Internal 2.4 GHz Wi-Fi Antenna (gain: ~2–3 dBi)
Standards
IEEE 802.11 b/g/n, 2.4 GHz
Tx Power
Up to 18 dBm (rate-dependent)
6. Cellular Interface
Network
4G LTE
Antenna Connector
1 × 50 Ω SMA Connector
SIM Slot
1 (Mini SIM)
7. Indicators
Reset Button
1 × RST (Internal) (check with h/w)
LED Indicators
1 × Power, 1 × Internet conectivity (check with h/w)
Built-in
Watchdog, Timer (check with h/w)
8. Power Supply and Consumption
Power Input
5V/2A by Type-C Port (check with h/w)
Power Consumption
Typical 1.8 W, Max 6.9 W (check with h/w)
9. Physical Characteristics
Ingress Protection
IP67
Material & Color
ABS, Grey
Weight
Dimensions
x x mm
Installation
Wall Mounting, Table Top (check with h/w)
10. Environmental
Temperature
-20°C to +60°C (check with h/w)
Relative Humidity
0% to 95% (non-condensing) at 25°C (check with h/w)
